GN solids control was funded on 2005, after more than 17 years development, GN has accumulated lots experience on the solids control industry for the drilling mud treatment, and we built long terms relationship with lots customer from all over the words. As long as our development, we use our equipment not only the oil gas industry ,but also the other industry ,such as environment protection, mining industry, water treatment, chemical industry etc. Currently, we have one set oil contaminated soil washing system is in manufacturing for middle east customer.

In the waste management and treatment , oil soil is one of the hardest material for treatment. As usually, it is oil water solids the 3 phase separation, and the oil is hard to separated out from soil. However it is very necessary to treat this kind polluted soil. This system include these main part: solids vacuum pump, soil washing separation, separation equipment, centrifuge equipment, and dewatering equipment.

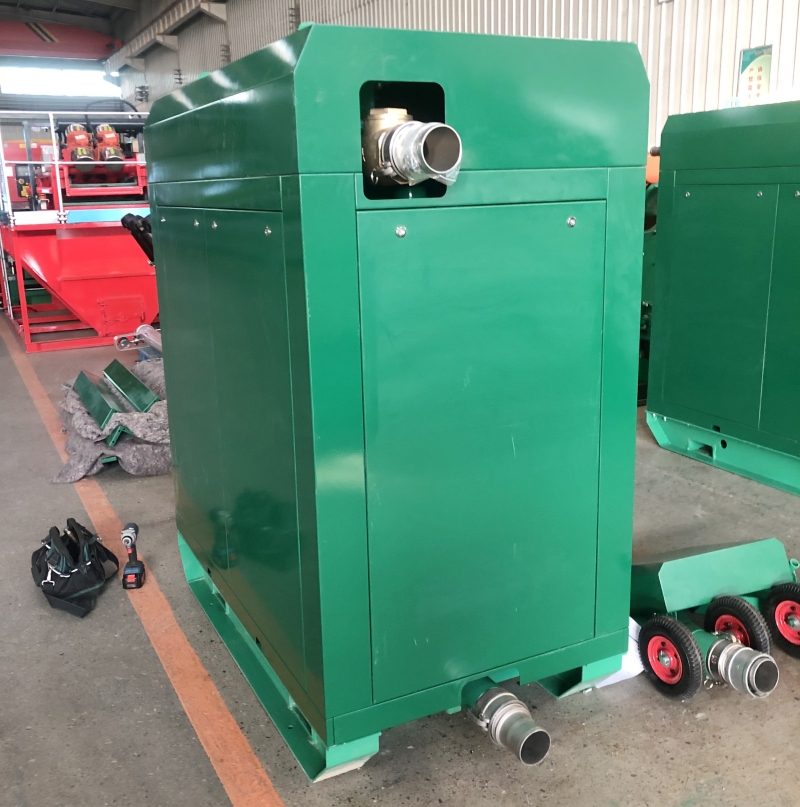

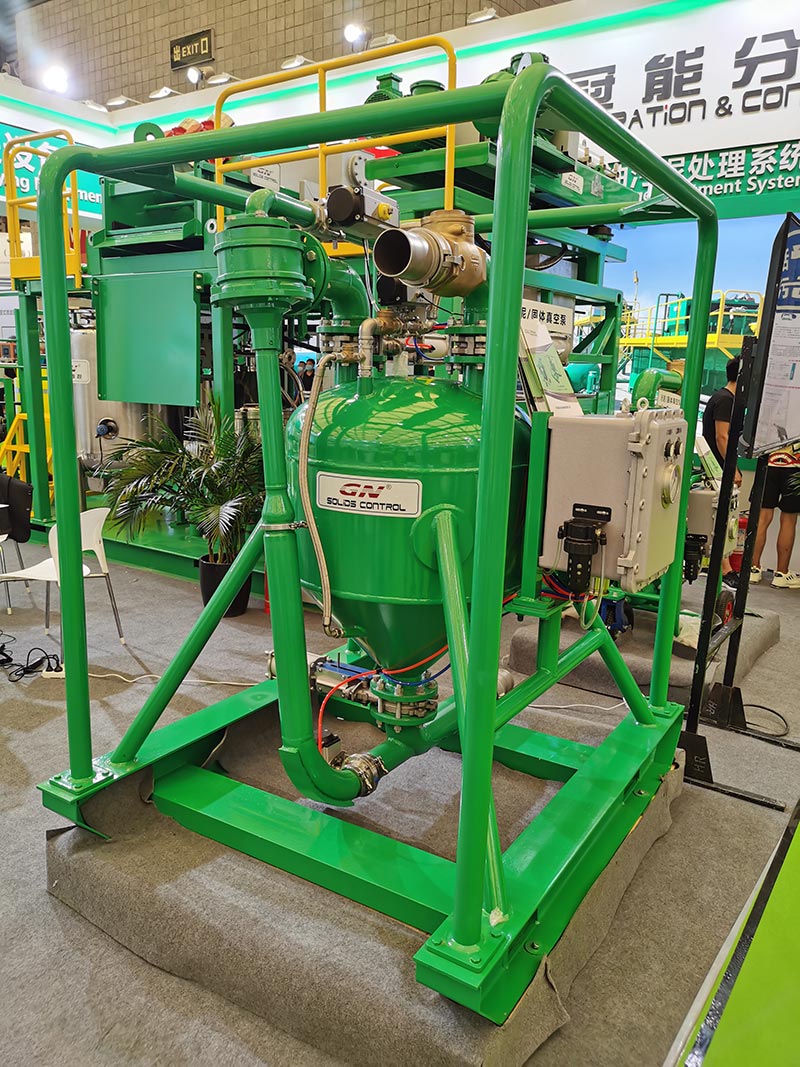

Solids vacuum pump is used to transfer this high solids content sludge , the normal pump is not workable to pump this kind material. GN vacuum pump is driven by high pressure, and through the vacuum to suck material and discharge material by high pressure. When treat this kind material, firstly we need to washing the soil through the water, which can reduce the solids content, separate off the oil from solids, meanwhile we will mix chemical and heat material to make this separation easier. After that we will transfer this slurry into shale shaker to remove out the big particle size, and then the discharged liquid will be transfer into Decanter centrifuge to remove out the particle between 20-60 microns. After the 2 steps separation, liquid will be feed into disc centrifuge for the oil water and solids separate. Finally ,we can get the clean oil and clean water for reusing in the system.

If your project have demanded on these equipment, welcome to contact us .

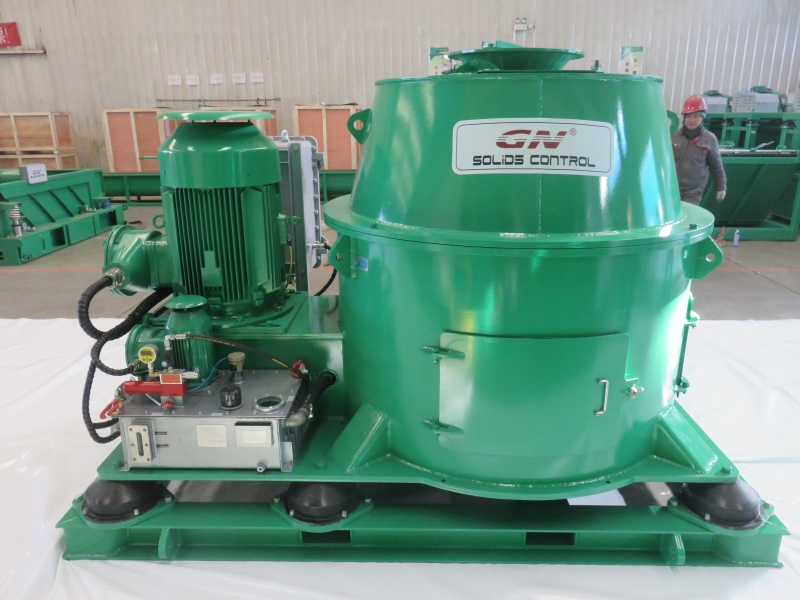

Last week GN Delivered 5 vertical cutting dryer and 10 units Decanter centrifuge to Nigeria. All these equipment were used for oil base mud treatment, the vertical cutting dryer are install after shale shaker of solids control system, which is used to dryer the drill cutting and recycle the involved mud inside of solids. Nigeria is one of our biggest market, and we had cooperate with this customer for more than 10 years. The client purchase from GN almost every year.

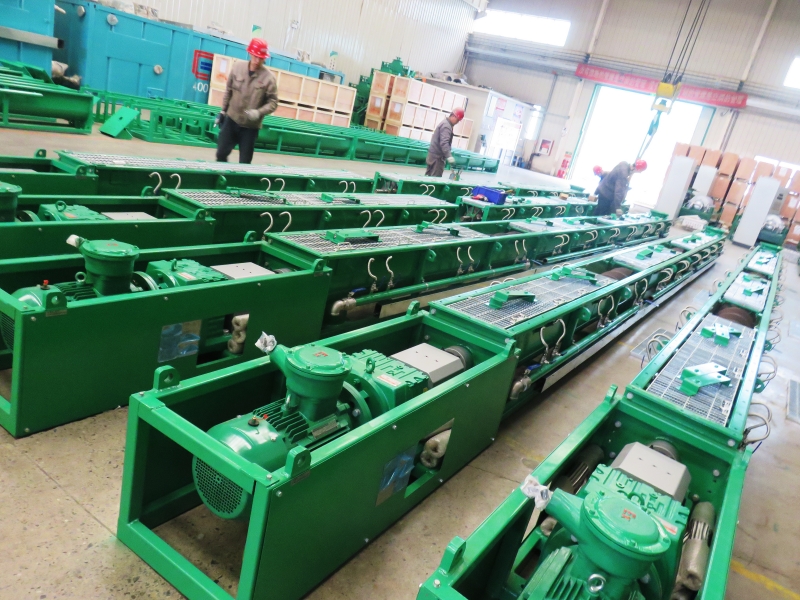

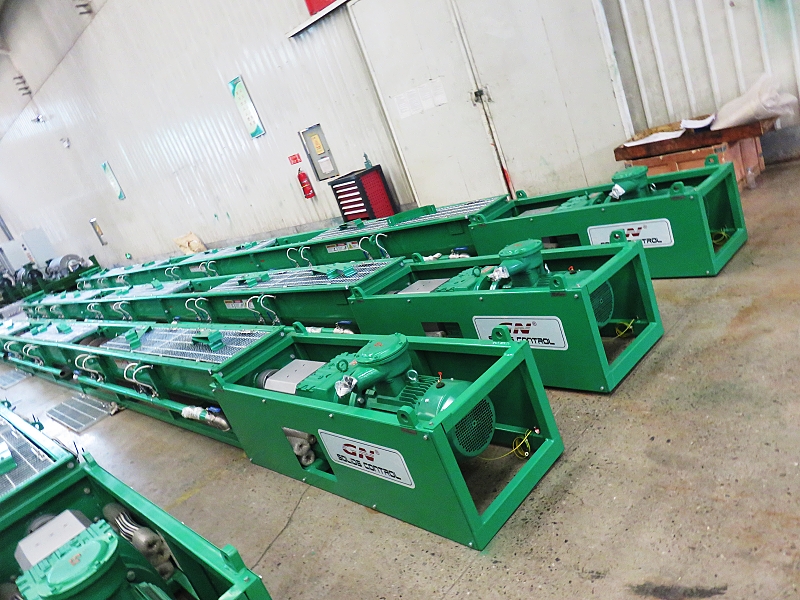

In this order, client required discharged from all machine without dropping on ground. Directly transfer the discharged machine into next machine without stop and non pollution to environment. In the case, we add lots screw conveyors to catch the solids and transfer them to next machine. For example, the screw conveyor will directly receive the solids from shale shaker and feed them into vertical cutting dryer. Below the vertical cutting dryer, there are also equipped screw conveyor，when the solids discharged from vertical cutting dryer, the conveyor will transfer them to truck and transport them to other site for further treatment. Same with shale shaker and vertical cutting dryer, below the Decanter centrifuge ,there are also installed screw conveyor. Between the vertical cutting dryer and Decanter centrifuge , there are screw pump to pump the discharged liquid to centrifuge. These liquid after treatment by centrifuge ,it will clean enough to back to mud system for reuse.

Oil base mud is very expensive material for the well drilling, and it is also important to improve the drilling efficiency and cooling the rig and protect the rig ,and also balance the pressure between inside and outside or machine. Our solids control equipment is aim to keep the good property of drilling mud. And recycle as much as possible from drill cutting, that is helpful to reduce the cost of drilling and improve efficiency. If you have demanded on these equipment, welcome to contact us.

With more than 15 years development, GN solids control accumulate large experience about the separation equipment design and manufacture, especially on the oil gas industry for drilling mud treatment. We are very good at manufacture the customized solids control system and also provide the special technical support. Last week we delivered sever sets mud cleaner for offshore drilling.

The mud cleaner is combination of shale shaker ,desander, and desilter. On the offshore. One machine can treat the sludge for 3 times to remove out different size particle, And the machine only need small area for layout. Compare with onshore drilling ,the offshore or drilling fleet both have more strictly requirement to equipment on explore proof standard, the lifting standard. Most time offshore will need DNV certificate to guarantee the lifting eyes are strong enough. For some electrical motor ,offshore always require some special certificate. GN provide many equipment to offshore drilling project, and we are totally can satisfied with client demand. Mud cleaner is one of the most important equipment after shale shaker in solids control system. It include 2 units 10 inch hydrocyclone and 12 units 4 inch hydrocyclone and also the bottome shaker. Centrifuge pump will feed slurry to 10 inch hydrocyclone first and remove out the particle bigger than 60um. The discharged solids will drop on the bottom shaker to dryer the solids.  Then one more centrifuge pump will feed slurry from bottom tank to 4 inch centrifuge, 4 inch centrfiuge can remove out particle bigger than 20um. For most project, the slurry after treatment by mud cleaner, it would be enough to recycling. However, if the jobsite require more clean slurry, we can add one extra Decanter centrifuge to remove out the tiny solids smaller then 20um.

The stable solids control equipment can help client to recycle more drilling mud and save the money for customer. GN are very professional on this field, if you have demanded on these equipment, welcome to contact us.

GN Solids Control was fund in 2005, as begin we main main manufacture solids control equipment for oil gas industry such as shale shake, mud cleaner, Decanter centrifuge. These equipment are used for drilling mud treatment. With the development and also the accumulation of technology, till now GN not only serve oil gas industry but also also separation application such as mining industry, waste water treatment. However, oil gas industry is still main industry for us to serve.

Last week we delivered one set solids control equipment to Africa customer, which include two units shale shaker, one unit mud cleaner and also one unit decanter centrifuge. Actually client also need some mud tank for this system ,but we suggest client to made tank in their local, GN will provide all design drawing of tank, that will help client to save money. Because the tank shipping cost will be very expensive. GN equipment was very popular in Africa market, compare with other solids control supplier. GN solid control manufacture according API standard, and every year API institute will inspect our company to make sure everything of GN will comply with API standard. except the stable quality, GN also have very competitive price compare with other supplier. Till now we have exported to more than 76 countries.

In this order, these equipment are used for one 1500HP rig system, 1500 rig system usually can drilling 1500~2000 meters well, the treating capacity is not very big. So client only buy one unit GN 14 inch Decanter centrifuge. It will be used to remove the tiny particle when the drill mud was recycled many times and accumulated much tiny particle that the shale shaker and mud cleaner can not remove them out , this time we need to start Decanter centrifuge to separate out these tiny particle through the high separation G force.

Tech support is the always provided quickly, if you have demand on solids control equipment, welcome to contact us any time.
